Description
Product Description

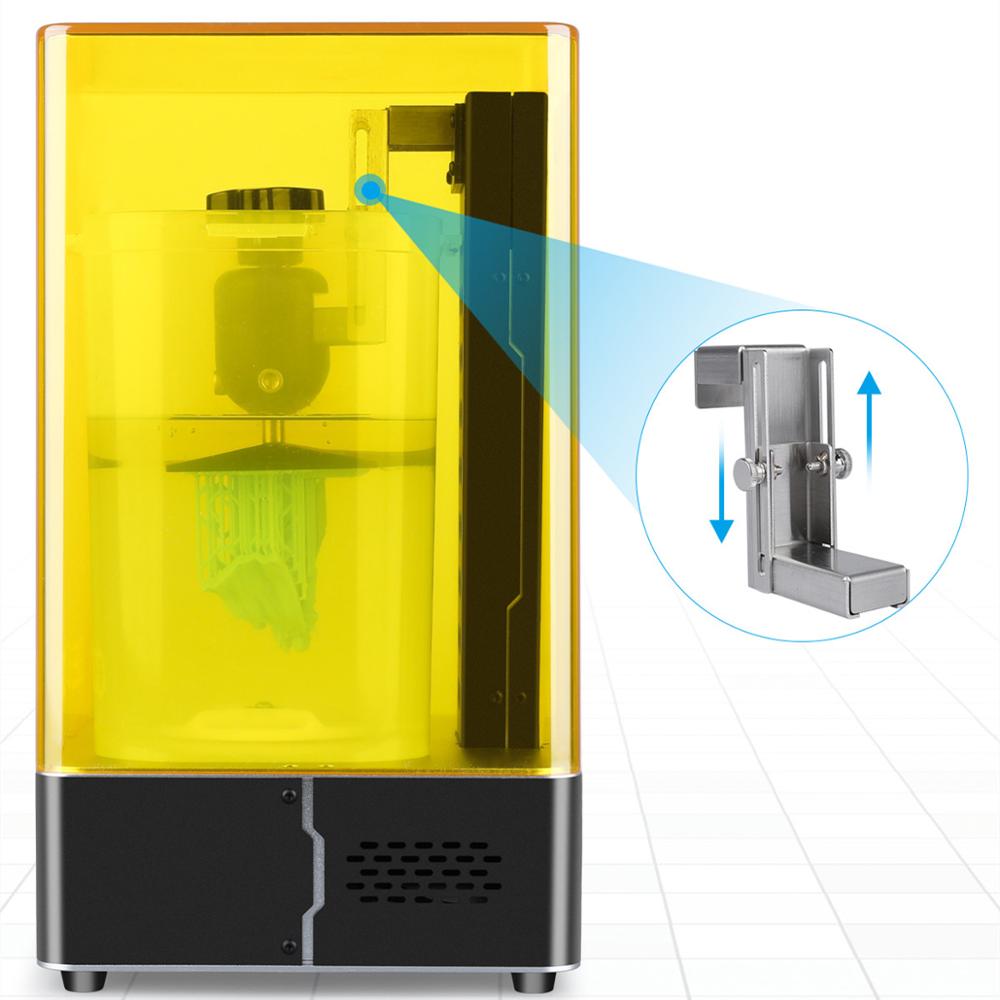

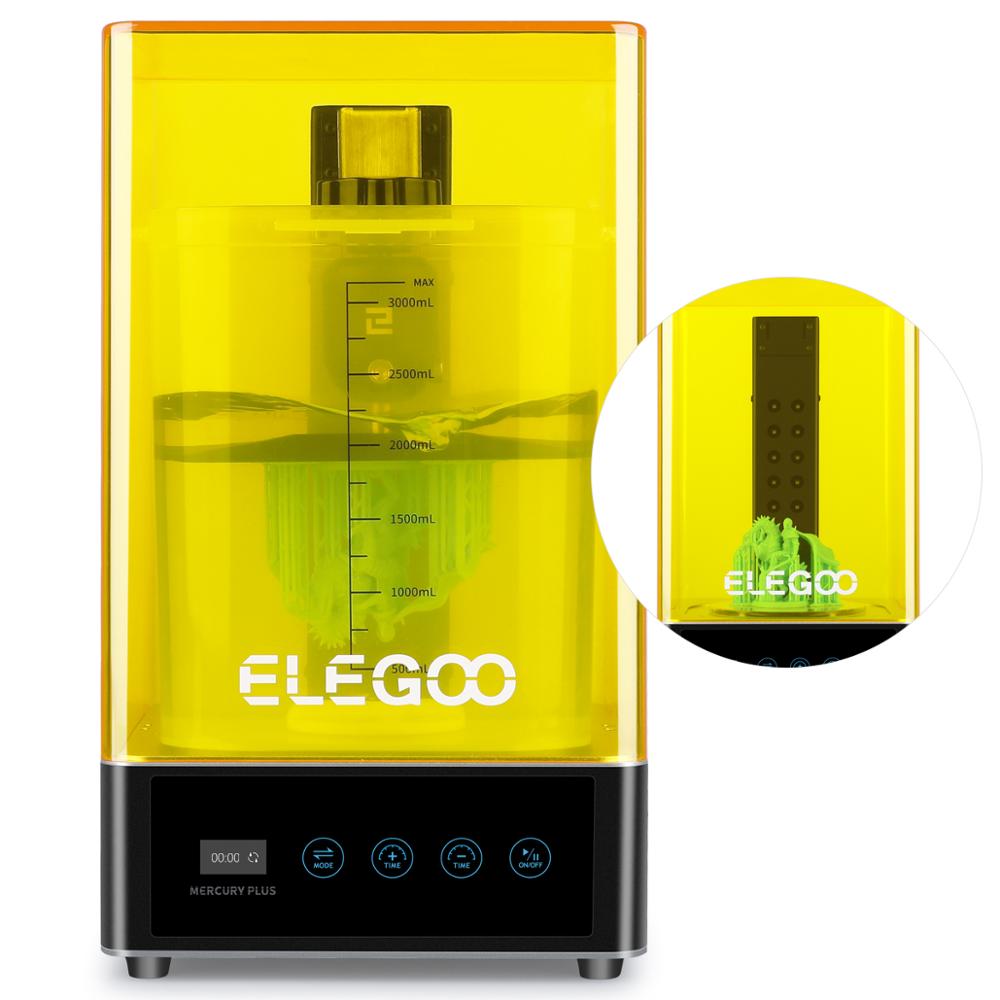

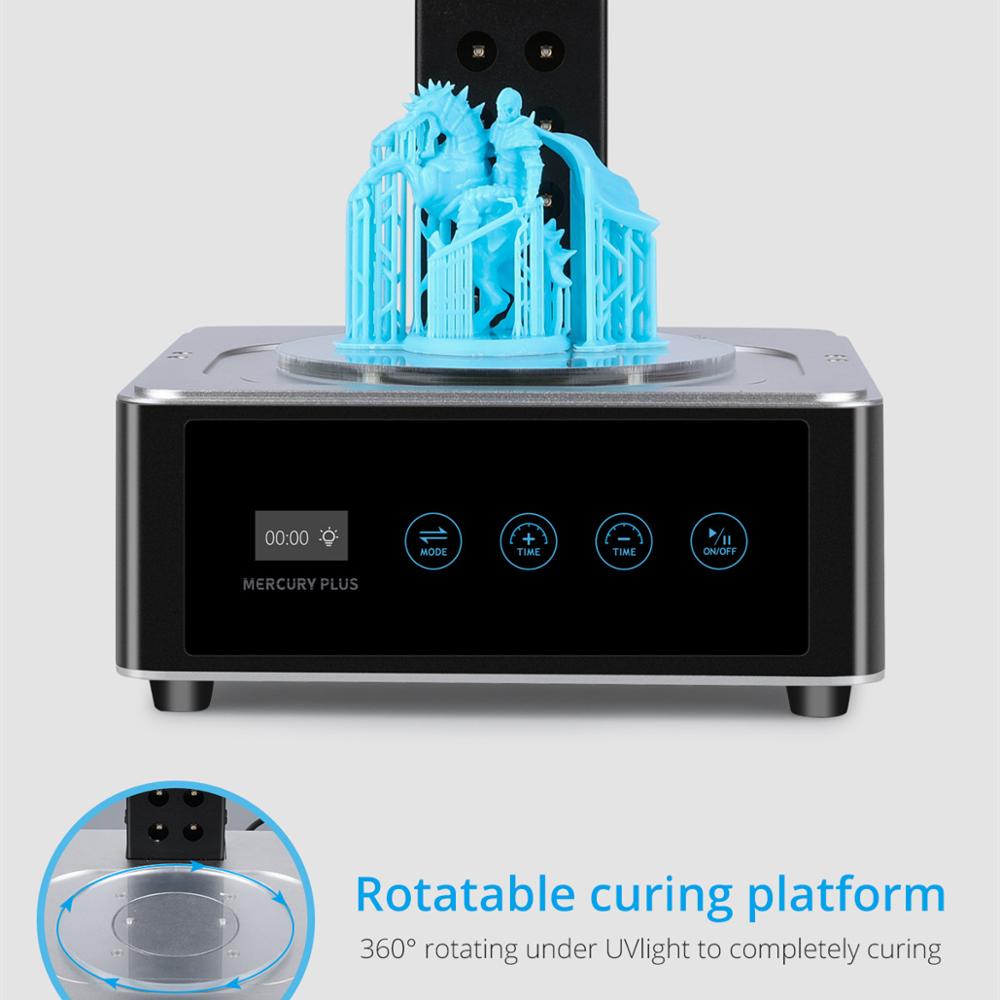

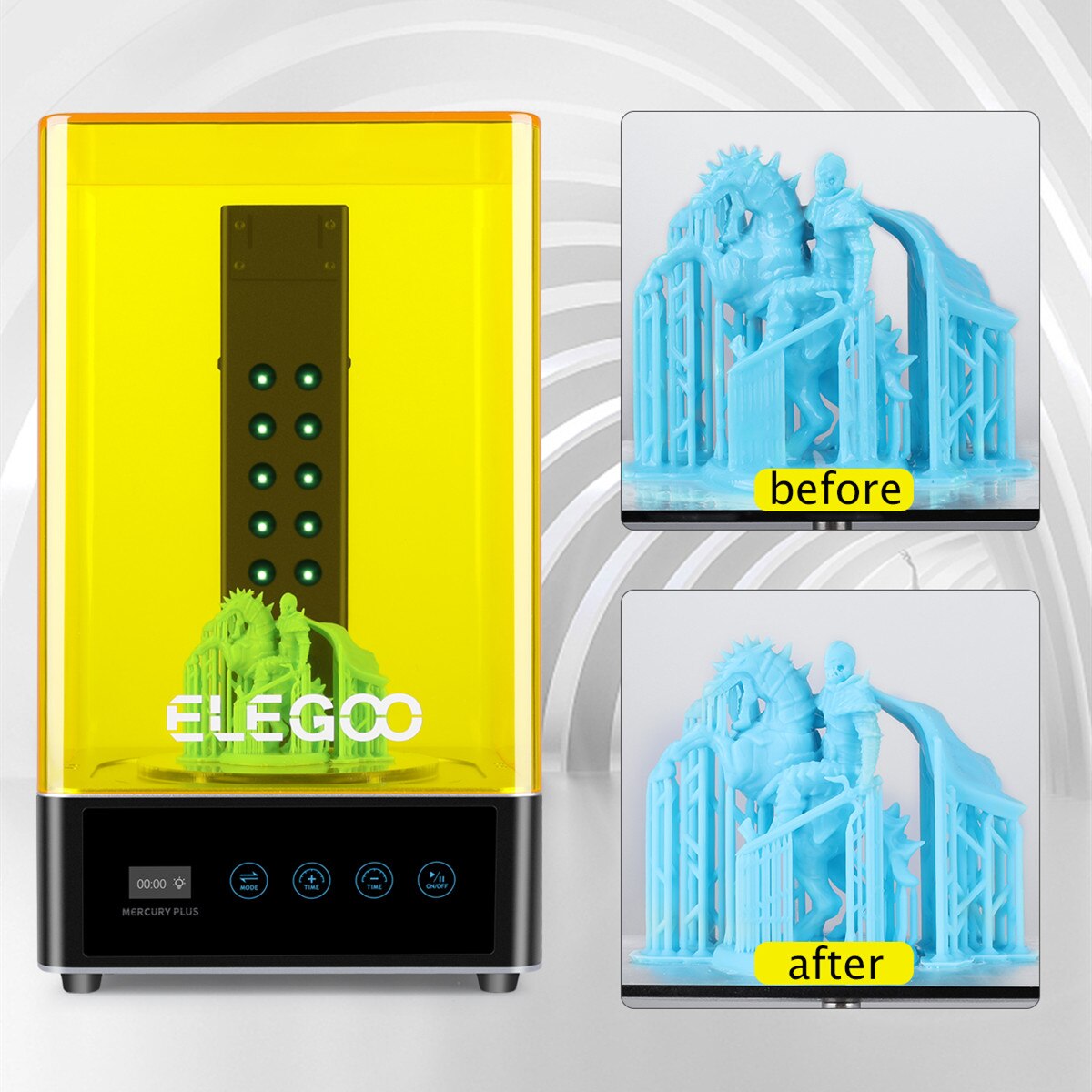

【Dual Function】Wash and Cure 2 in 1 design makes washing and curing for 3D printed models reallized in one machine. The operating process is now more efficiency with less effort to meet your different needs. 【Fexible Washing Mode】The models can be placed in the cleaning basket to clearn separately, or mount the build plate with models on it and wash them together, which can avoid direct contact to uncured resin. The height of the platform bracket can be adjusted to fit the liquid level in the bucket. 【Intelligent Curing Control】Built-in 8pcs 385nm plus 8pcs 405nm UV curing lamp beads, work together with the 360-degree rotating curing turntable, which can cure the models evenly. 0.96 inch TFT LCD screen can visually display the set time and the remaining time. With automatic protection, picking up the cover in the operating state will suspend operation and emit a beeping sound. The cover can block 99.95% of ultraviolet rays to protect your vision. 【Ideal Compatity 】Compatible with most of the LCD/DLP/SLA 3D printers like ELEGOO Mars, Mars Pro, Mars C, photon, photon s on the market, which provides you an ideal support for your 3D resin prints. 【Special Notes 】The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be wahed with running water.
Product Specification

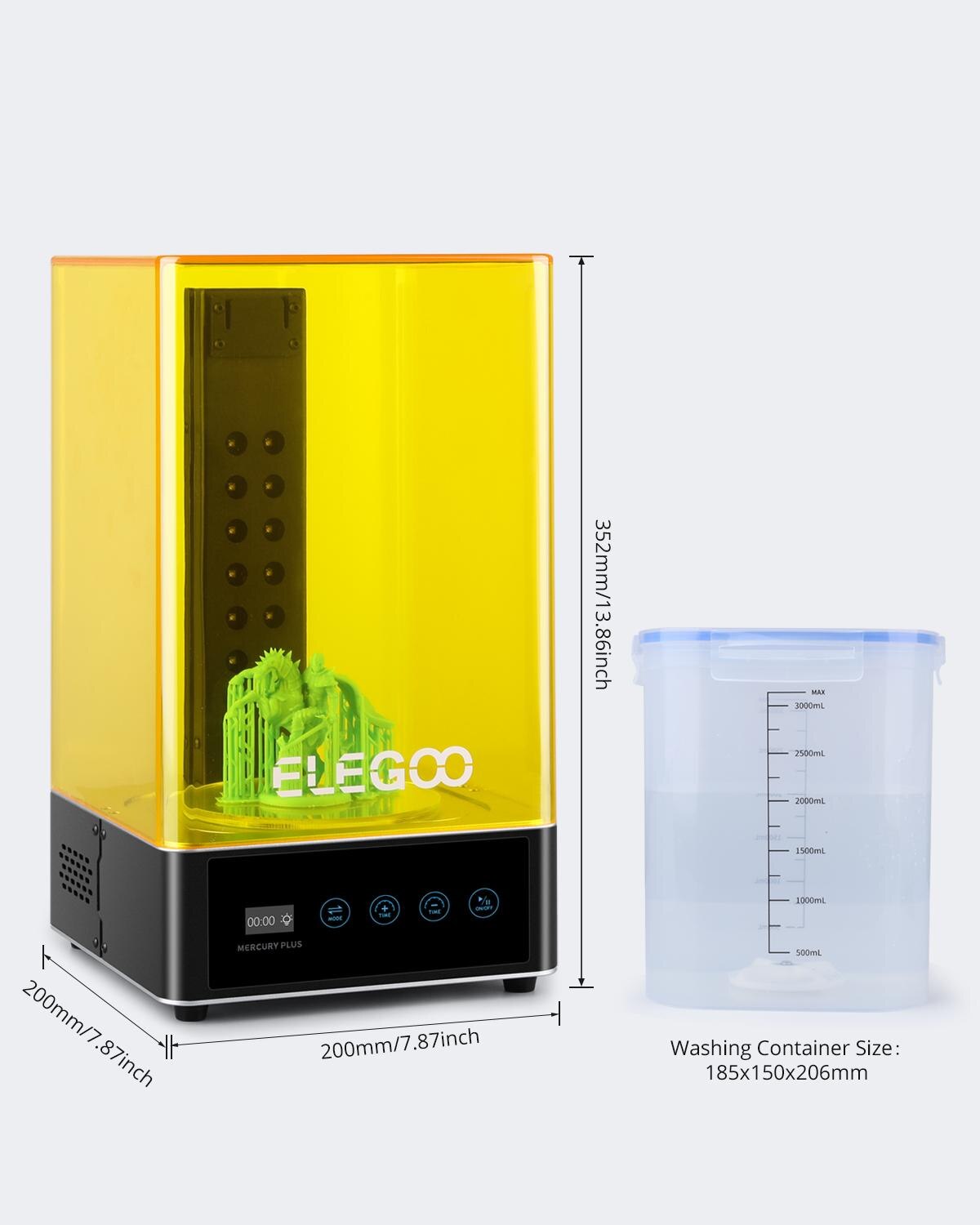

Technical Specification: Machine Name: ELEGOO Wash & Cure Machine Control Method: Touch button Rated Power: 48W Input Voltage: 110V/220V 50/60H UV Light: 385nm+405nm（8+8） Time Setting: 0-15mins Machine Size: 200mm*200mm*352mm Maximum Wash Volume: 125mm*85mm*160mm Maximum Curing Size: φ140*165mm Machine Net Weight: 4.8kg Curing Time Setting: For model with diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly. Operation Instructions: 1. After the model is printed, please clean and blow-dry the model before putting it into the machine, otherwise the surface of the model would be sticky, cracked or covered with white residues. 2. If the model become yellow after curing, please adjust the curing time. Over curing will lead to a yellowing model. 3. The recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%. 4. To avoid overheating of the curing cabinet, please do not use it for more than 40 minutes at a time. 【Special Notes 】 The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
Product Introduction

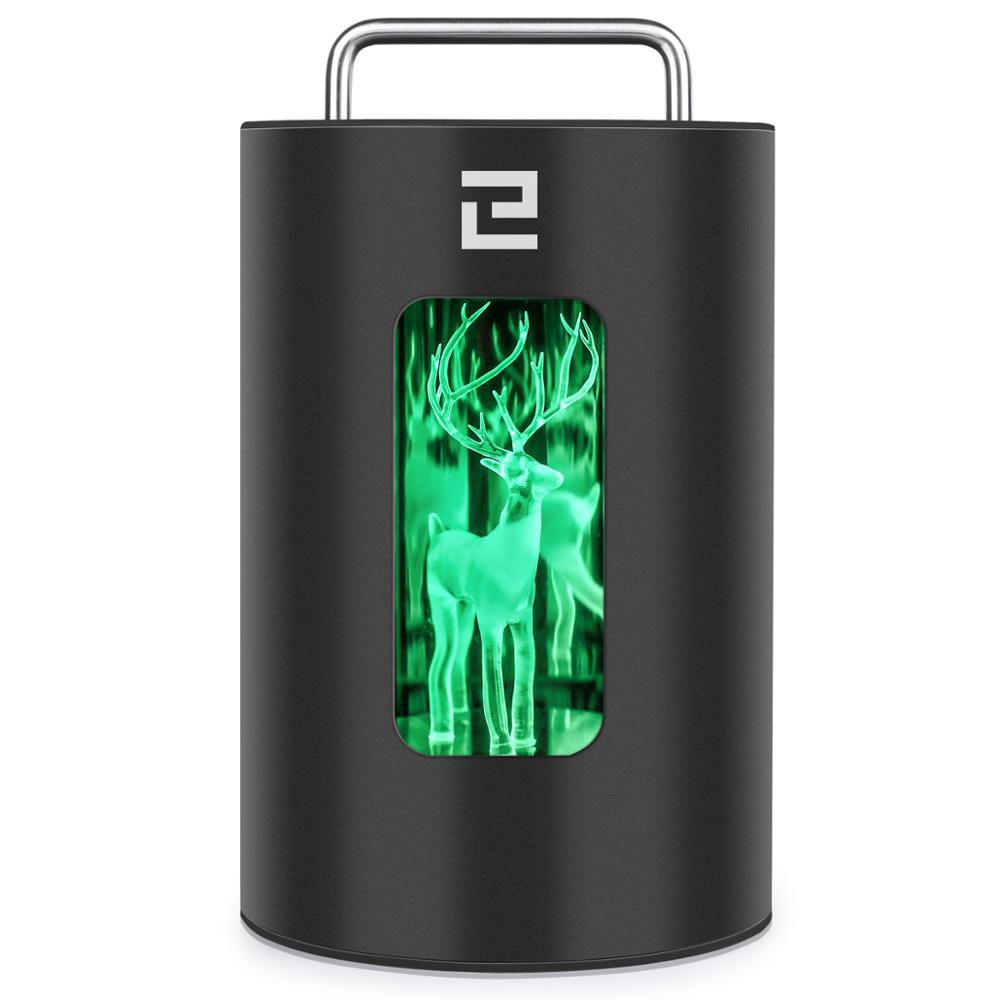

ELEGOO Mercury UV Curing Machine outputs steady, focused and consistent UV lights to cure the models printed with photopolymer resins 360°. The post curing process increases the hardness and durability of the printed products
Product Features
【Intelligent Time Control】The LED time display enable you to control the curing time conveniently. 【Light Driven Turntable】The light driven turntable is able to absorb UV light to rotate without battery. 【Reflective Sheet】There is reflective sheet inside the cabinet which have the lights focused to get a better curing effect. 【Two 405nm LED Strip】ELEGOO curing box adopts two 405nm LED strip (14 UV LED light in total) in order to fast cure and evenly illuminate printed models. 【See-through Window】The see-through window not only assists you to observe the curing process, but also help keep the UV light away from leakage.
Product Parameter
Product Name: ELEGOO MERCURY Curing Machine Control Method: Touch-sense Key Controller LED Lamp: 405nm Rated Power: 25W Input Voltage: 110V/220V 50/60Hz Time Setting: 0-9mins30s Machine Size: φ150*251. 5mm Maximum Curing Size: φ142*50mm Machine Net Weight: 1.35kg
Product Details
The shell of ELEGOO Mercury curing machine is made of light yet sturdy aluminum alloy with sand blasting oxidation surface. The cylinder structure design and 360° turntable enable printed objects to be covered with a full illumination range. ELEGOO UV curing chamber comes with a reflective sheet stuck solidly inside. Thanks to the reflective sheet, the UV lights Mercury outputs are steady and focused so that it’s able to cure the printed models in a short period. The see-through window with particular optical filtering material not only assists you to observe the curing process, but also helps keep 100% UV light away from leakage to ensure a great curing result. ELEGOO Mercury curing box features a real-time display screen. The LED time display enable you to control the curing time conveniently. In addition, the touch-sense buttons act quickly for you to easily adjust curing time from 0s to 9 mins30s. The UV LED wavelength ranges of ELEGOO Mercury Curing machine is 405nm. It is compatible with ELEGOO resin and most standard 405nm resin, suitable for most LCD, DLP, or SLA 3D Printed objects in the market. The light powered turntable is able to absorb UV light to rotate without battery. What’s more, ELEGOO Mercury curing box adopts two 405nm LED strip (14 UV LED lights in total) in order to fast cure and evenly illuminate printed models.
Operation Instructions
Please do not take away the box cover while the machine is working. To avoid overheating of the curing cabinet, please do not use it for more than 40 minutes at a time. After the model is printed, please clean and blow-dry the model before putting it into the curing machine. The recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%. If the model become yellow after curing, please adjust the curing time. Over curing will lead to a yellowing model.
