Description
Technical Specification:
Machine Name: ELEGOO MERCURY PLUS Wash & Cure Machine
Control Method: Touch button
Rated Power: 48W
Input Voltage: 110V/220V 50/60H

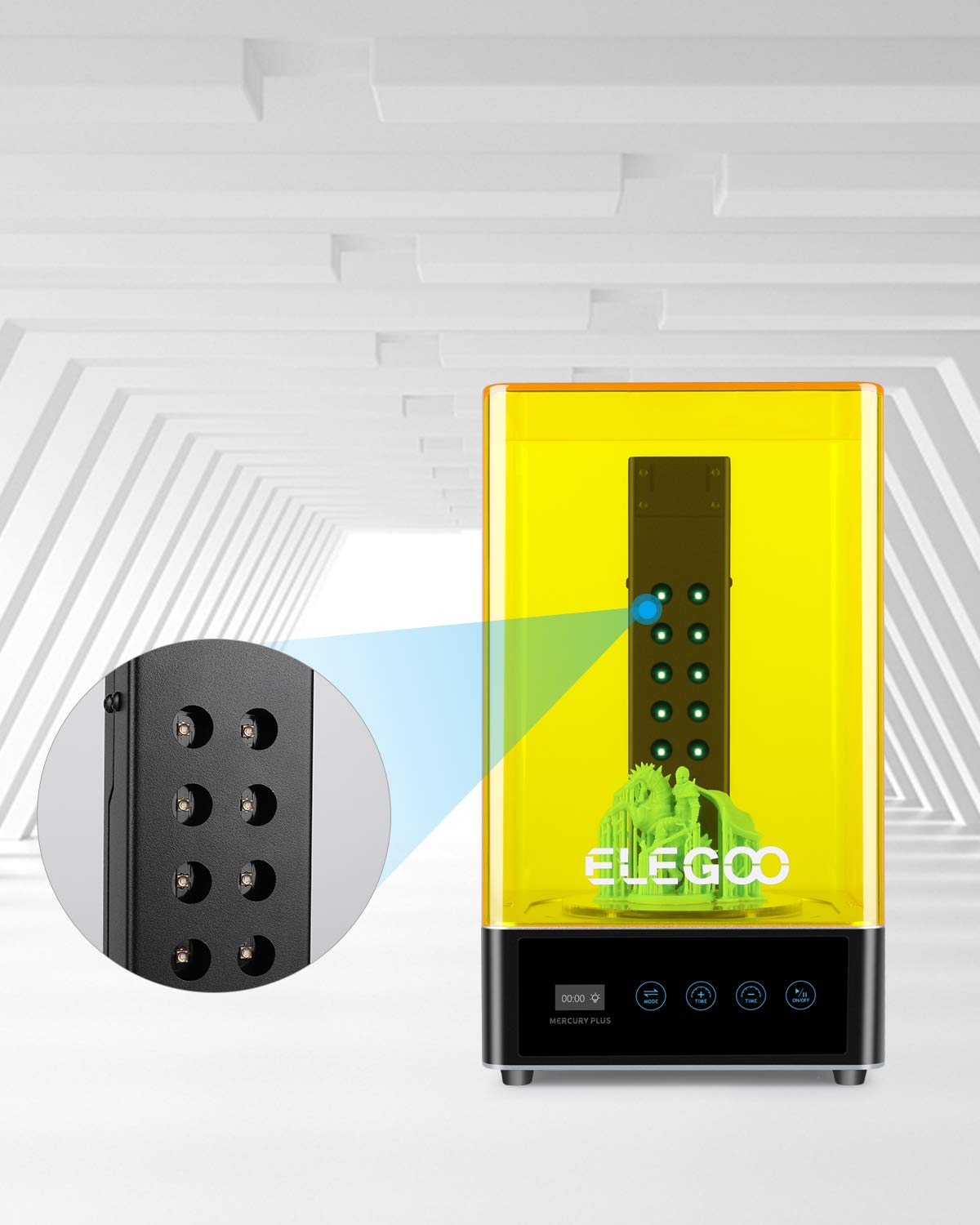

UV Light: 385nm+405nm (8+8)
Time Setting: 0-15mins

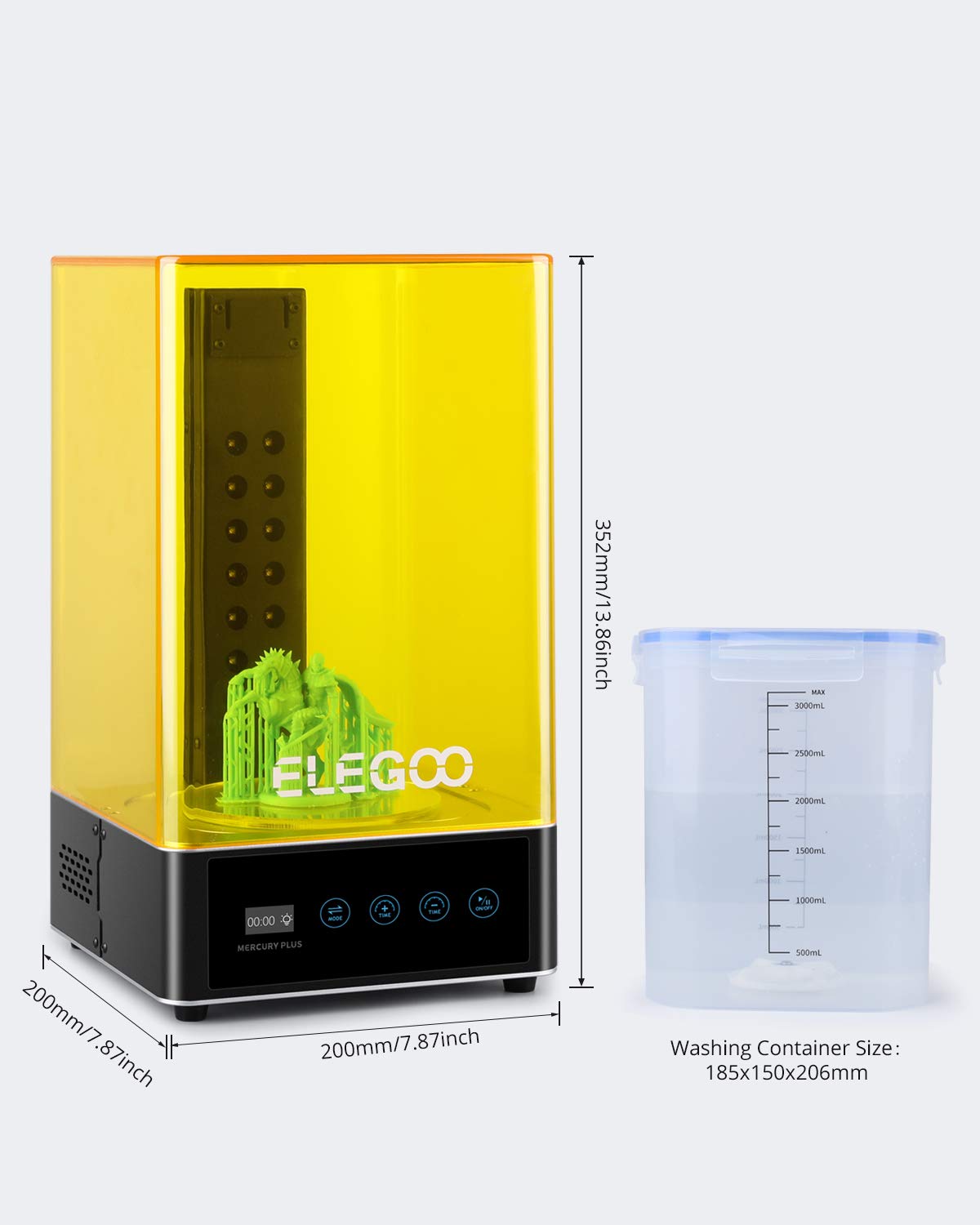

Machine Size: 200mm*200mm*352mm
Maximum Wash Volume: 125mm*85mm*160mm
Maximum Curing Size: φ140*165mm
Machine Net Weight: 4.8kg
Curing Time Setting: For model with diameter less than 30 mm, the curing time is recommended to be 2 minutes.
If the surface structure of the model is complex, it is recommended to increase the curing time properly.
Operation Instructions:
1. After the model is printed, please clean and blow-dry the model before putting it into the machine, otherwise the surface of the model would be sticky, cracked or covered with white residues.
2. If the model become yellow after curing, please adjust the curing time. Over curing will lead to a yellowing model.
3. The recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%.
4. To avoid overheating of the curing cabinet, please do not use it for more than 40 minutes at a time.
【Special Notes 】
The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
