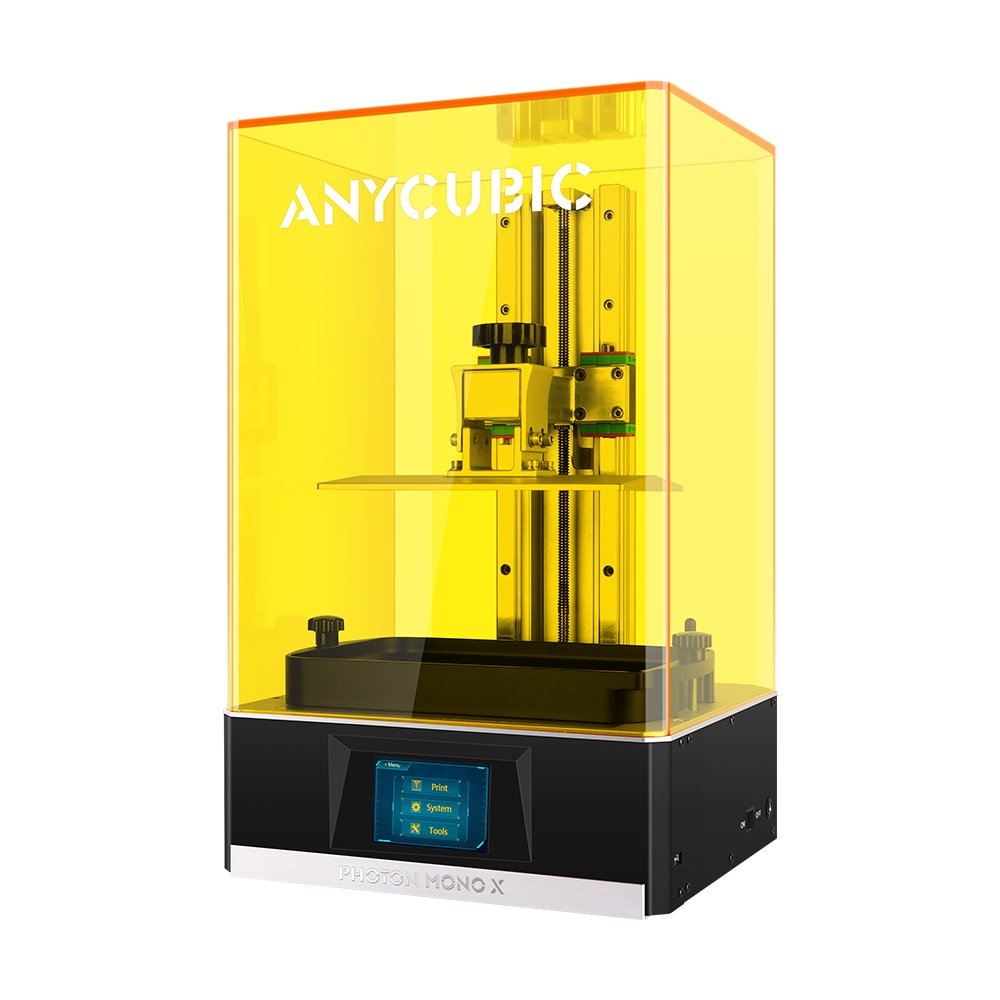

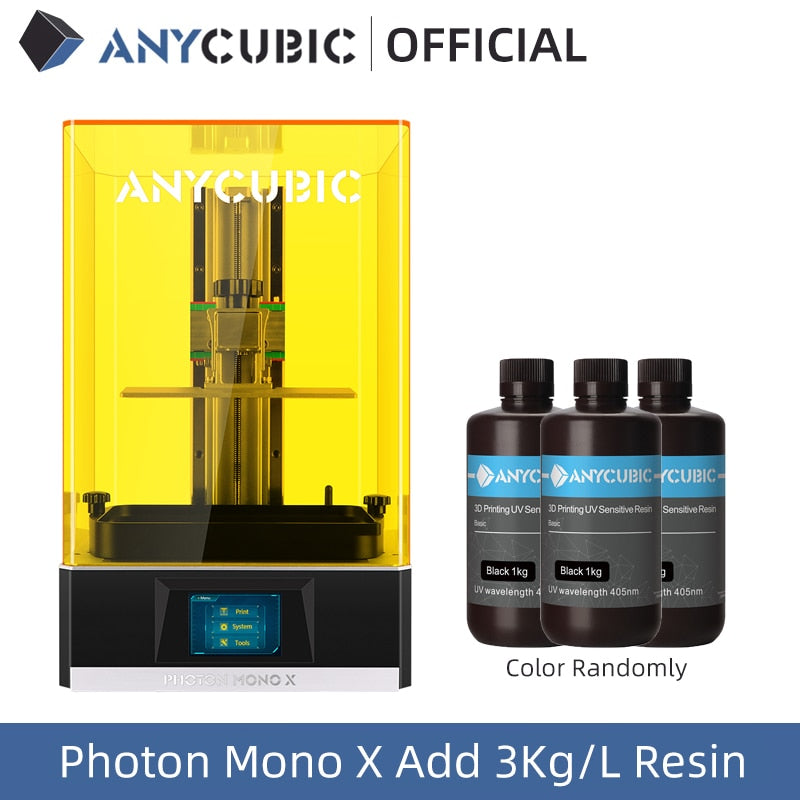

Photon Mono X （4k）
Larger & Faster
High speed resin 3D printer
Anycubic Photon Mono X 3D Printer 8.9″ 4K Monochrome LCD Fast Printing Speed APP Remote Control SLA/LCD impresora 3d
- Technical Specifications
- ● System : ANYCUBIC Photon Mono X
- ● Operation : 3.5 inch Touch Screen
- ● Software : ANYCUBIC Photon workshop
- ● Connectivity : USB
- ● Technology: LCD-based SLA
- ● Light-source: high-quality filament（wavelength 405nm）
- ● XY Res.: 0.050mm 3840*2400（4K）
- ● Z Axis Res.: 0.01mm
- ● Layer Res.: 0.01-0.15mm
- ● Printing Speed: MAX 60mm/h
- ● Rated Power: 120W
- ● Printer Size : 270mm(L)*290mm(W)*475mm(H)
- ● Build Volume: 192mm(L）*120mm(W）*245mm（H）
- ● Material: 405nm UV Resin
- ● Net Weight: ~10.75kg
- ● Gross Weight: ~14kg

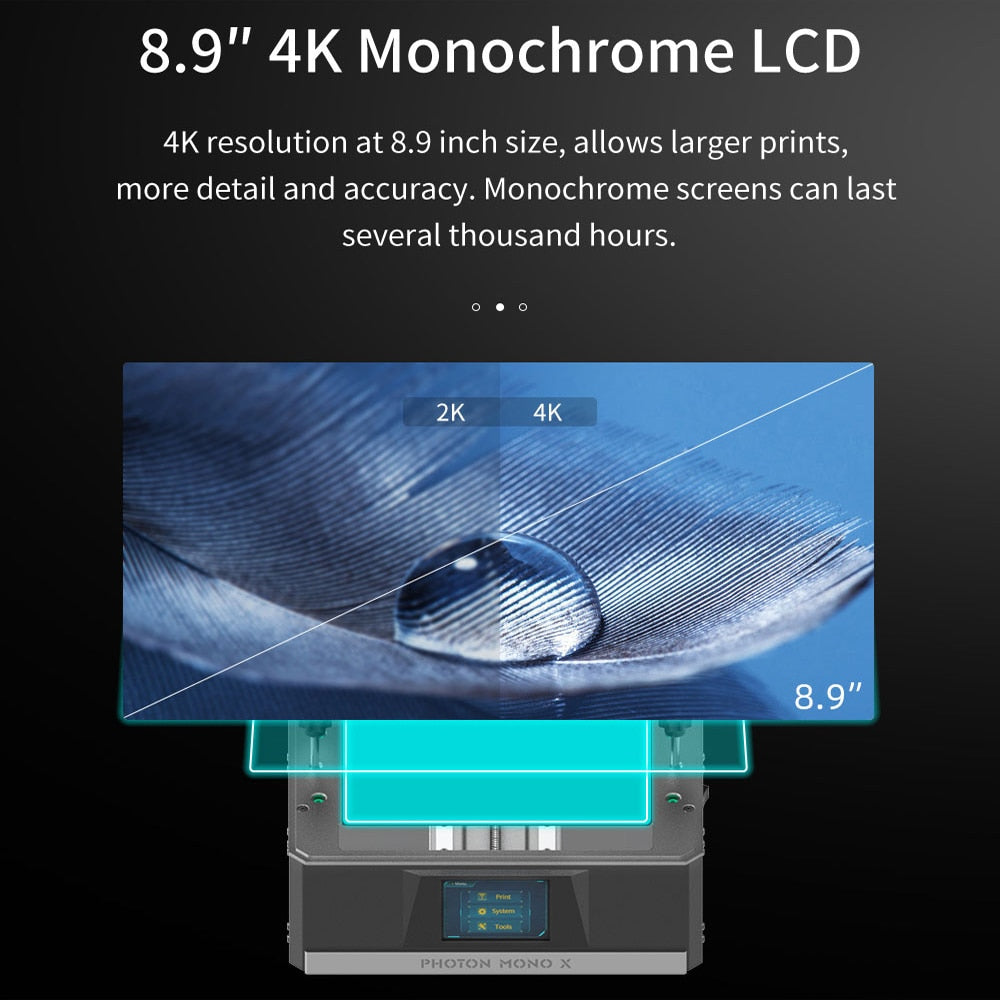

8.9″ 4K Monochrome LCD
4K resolution at 8.9 inch size, allows larger prints, more detail and accuracy.
Monochrome screens can last several thousand hours.
Monochrome screens allow for very short layer exposure times for faster print times.

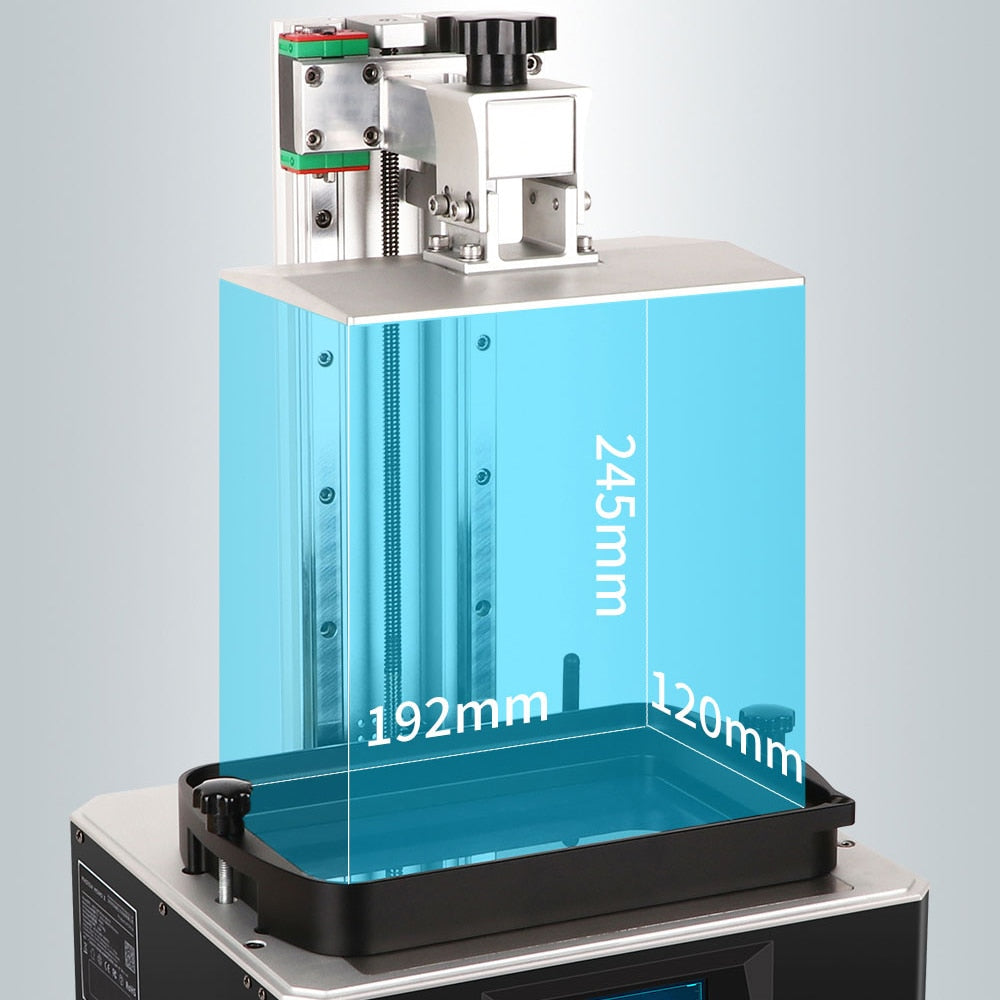

Large Build Volume
A large build area for your 3D-printed creations :192mm(L）*120mm(W）*250mm（H）
Fast Printing Speed
The time of exposure is as low as 1.5-2 seconds, and the max print speed is 60mm/h, making printing speed 3X faster than the Photon.

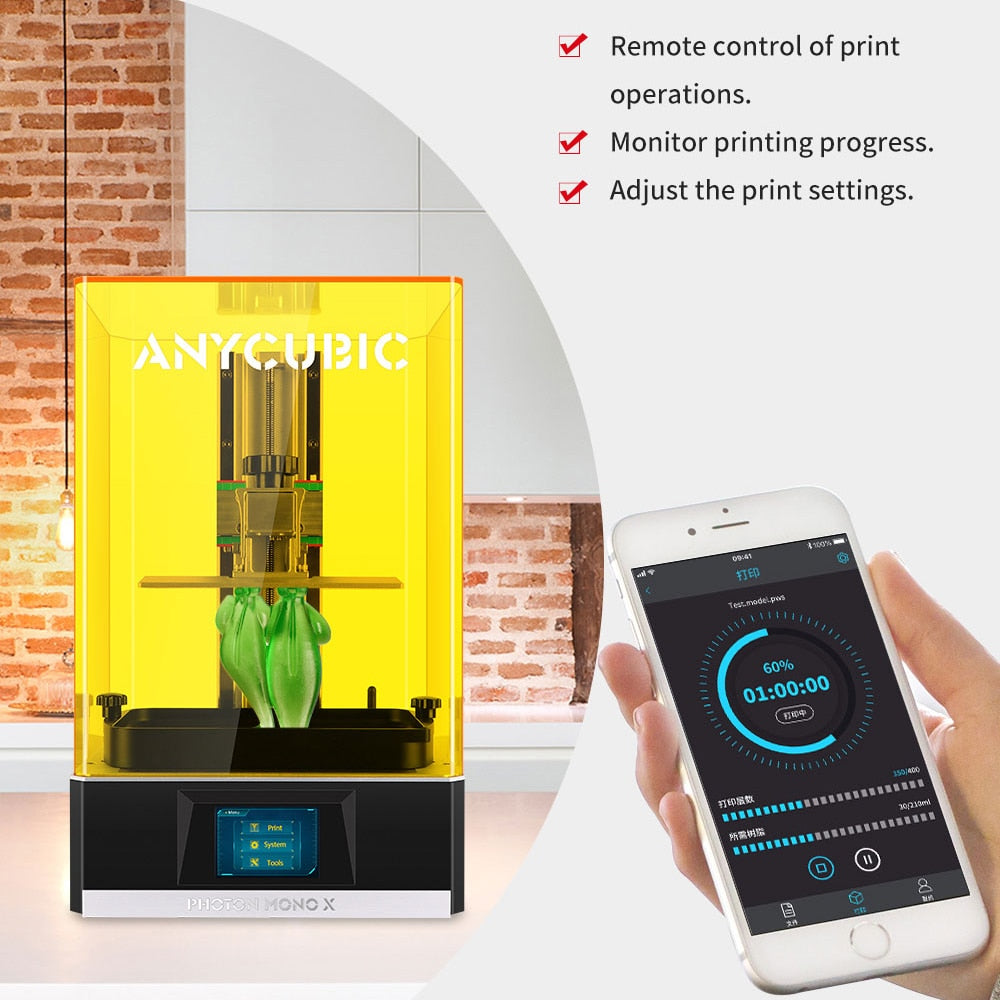

Anycubic APP Remote Control
Remote control of print operations
Monitor printing progress
Adjust the print settings
New Matrix UV Light Source
High quality quartz lamp bead and new matrix design for uniform UV light energy. 4K monochrome LCD delivers high-quality prints.
UV Cooling System
Cooling device for stable printing performance and longer service life.
High Performance Z-axis Motion System
The Z-axis is supported by dual linear rails，stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of layer shifting.
Anycubic Slicer Software
New features are added to the software. Supports up to 8x anti-aliasing.
- Fast slicing
- Hollowing
-Model cutting
- Lettering
High Quality Power Supply
UL certification, CE marking, and ETL certification
①Brushed Aluminum Platform Significantly enhances the adhesion between platform and prints.
②Marks in Resin Vat Accurately view how much resin is left with the marks in the resin vat.
③Fully functional touch screen menu The New UI is highly intuitive and responsive
④Safe design Printer will be immediately shut off if the top cover has been removed. This feature is turned off by default
